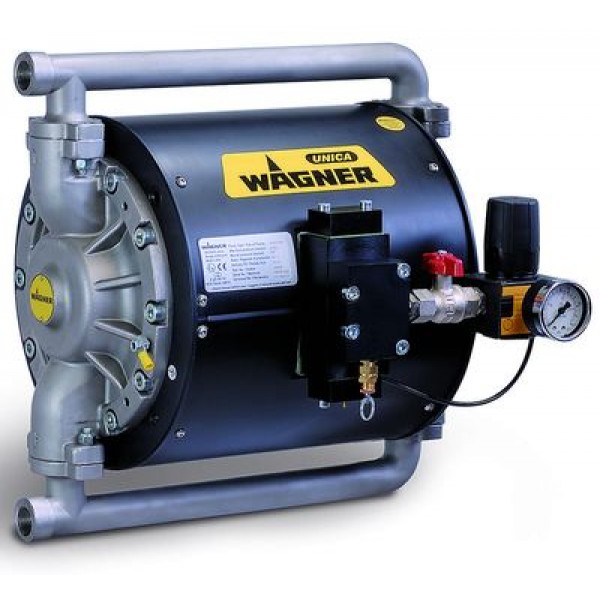

Unica 4-270
Low-pressure diaphragm pump
Product Code: Unica 4-270
Double diaphragm pump 4.5:1 for product transport and circulating systems. For pressures up to 27 bar and 8 L/min.
| PUMP RATIO | 4.5 :1 |
| OPERATING PRESSURE | 27 bar, 392 PSI |
| VOLUMETRIC FLOW PER DOUBLE STROKE | 270 cm³/DS, 16,48 in³/DH |
| VOLUMETRIC FLOW WITH FREE DRAINAGE | 8.1 l/min, 2.1Gpm |
| MATERIAL INLET | F–G 3/4“ |
| MATERIAL OUTLET | F–G3/4‘‘ |
| MAX. SUCTION LIFT | 4 m, 13.1 ft |
| AIR INLET CONNECTION | F–G 1/2“ |
| AIR INLET PRESSURE | 3,0 – 8,0 bar, 44 – 116 PSI |
| SOUND LEVEL AT 40 CYCLES AND 6 BAR AIR INLET PRESSURE | 78 dB(A) |
| WEIGHT | 45,0 kg, 99.2 lb |
