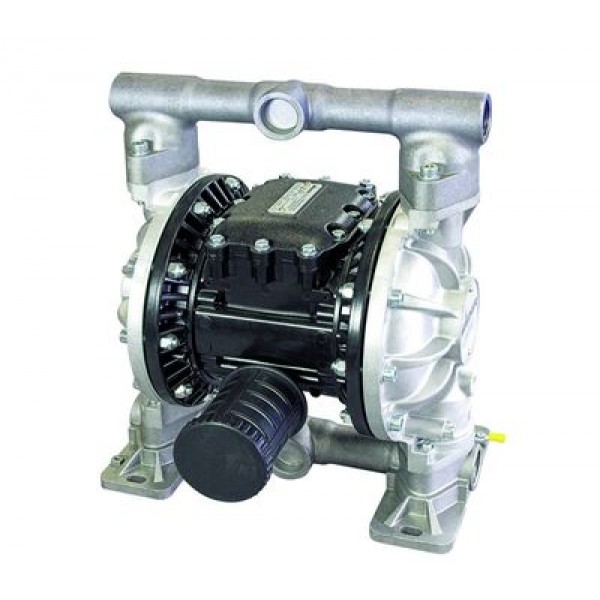

Zip 182
Low-pressure diaphragm pump
Product Code: Zip 182
Double diaphragm pump for material transport and circulating systems. Up to 8 bar and 182 L/min.
| OPERATING PRESSURE | 8 bar, 116 PSI |
| VOLUMETRIC FLOW PER DOUBLE STROKE | 300 cm³/DS, 18,31 in³/DH |
| VOLUMETRIC FLOW WITH FREE DRAINAGE | 182 l/min, 48.1Gpm |
| MATERIAL INLET | F–G 1“ |
| MATERIAL OUTLET | F–G1‘‘ |
| MAX. SUCTION LIFT | 6.3 m, 20.7 ft |
| PARTICLE SIZE | 3.5 mm, 0.14 in |
| AIR INLET PRESSUREV1,0 – 8,0 BAR, 15 – 116 PSI | |
| SOUND LEVEL AT 40 CYCLES AND 6 BAR AIR INLET PRESSURE | 78 dB(A) |
| MATERIAL TEMPERATURE | 4 - 90 °C, 39.2 - 194.0 °F |
| WEIGHT | 12,5 kg, 27.6 lb |
