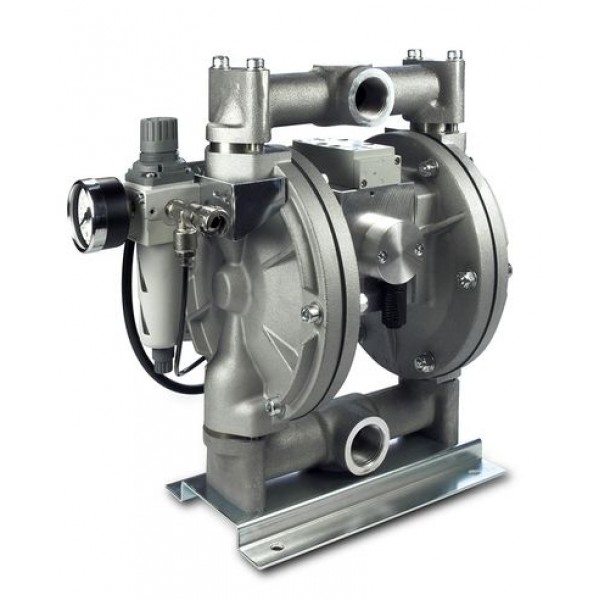

PM500
Low-pressure diaphragm pump
Product Code: PM500
Double diaphragm pump for material transport/conveying and circulating systems. Ideal for lacquer supply. Up to 8 bar product pressure.
| PUMP RATIO | 1 :1 |
| OPERATING PRESSURE | 8 bar, 116 PSI |
| VOLUMETRIC FLOW PER DOUBLE STROKE | 500 cm³/DS, 30,51 in³/DH |
| VOLUMETRIC FLOW WITH FREE DRAINAGE | 80 l/min, 21.1Gpm |
| MATERIAL INLET | F–G 1“ |
| MATERIAL OUTLET | F–G1‘‘ |
| MAX. SUCTION LIFT | 6 m, 19.7 ft |
| PARTICLE SIZE | 6 mm, 0.24 in |
| AIR INLET PRESSURE | 1,0 – 10,0 bar, 15 – 145 PSI |
| SOUND LEVEL AT 40 CYCLES AND 6 BAR AIR INLET PRESSURE | 81 dB(A) |
| MATERIAL TEMPERATURE | 4 - 90 °C, 39.2 - 194.0 °F |
| WEIGHT | 13,8 kg, 30.4 lb |
