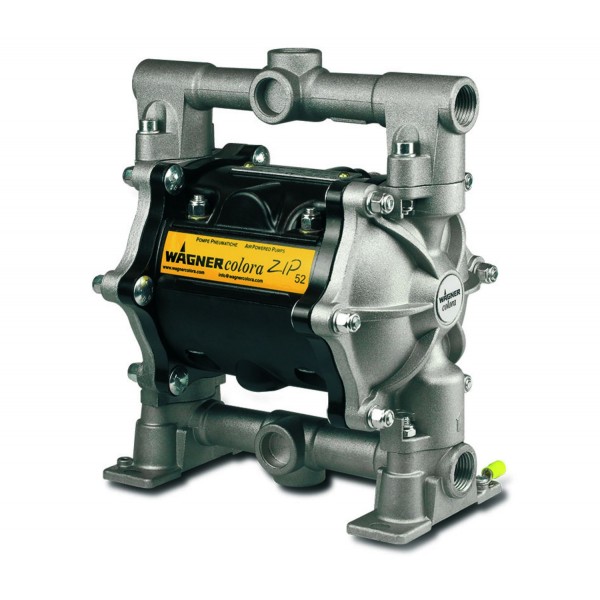

Low-pressure diaphragm pump

WAGNER
Product Code: Zip 52

Double diaphragm pump for material transport and circulating systems. Up to 8 bar and 52 L/min.

  • Specification
  • Download
  • Video

PUMP RATIO 1 :1
OPERATING PRESSURE 8 bar, 116 PSI
VOLUMETRIC FLOW PER DOUBLE STROKE 108 cm³/DS, 6,59 in³/DH
VOLUMETRIC FLOW WITH FREE DRAINAGE 52 l/min, 13.7Gpm
MATERIAL INLET F–G 1/2“
MATERIAL OUTLET F–G1/2‘‘
MAX. SUCTION LIFT 4.9 m, 16.1 ft
PARTICLE SIZE 2 mm, 0.08 in
AIR INLET PRESSURE 1,0 – 8,0 bar, 15 – 116 PSI
SOUND LEVEL AT 40 CYCLES AND 6 BAR AIR INLET PRESSURE 76 dB(A)
MATERIAL TEMPERATURE 4 - 90 °C, 39.2 - 194.0 °F

Related Products

Zip 52 Perfect Flow

Zip 52 Perfect Flow

Contact
Zip 80

Zip 80

Contact

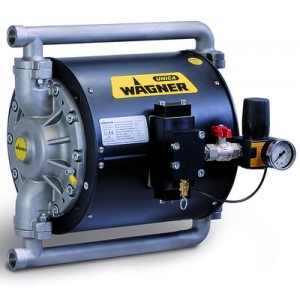

Unica 4-270

Unica 4-270

Contact

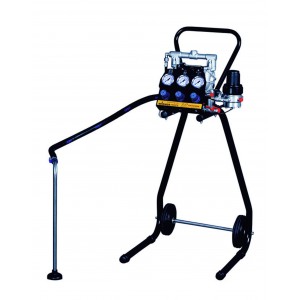

Zip 52 Finishing
