TOPFINISH GA 1020/1030

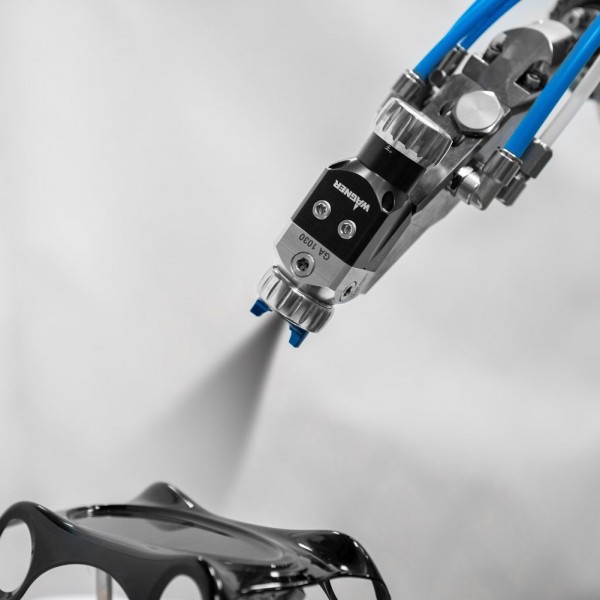

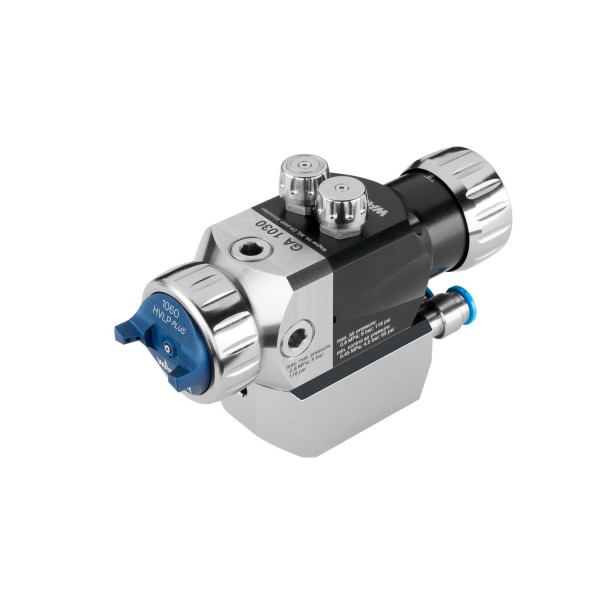

Automatic airspray gun GA 1020/1030
Product Code: TOPFINISH GA 1020/1030

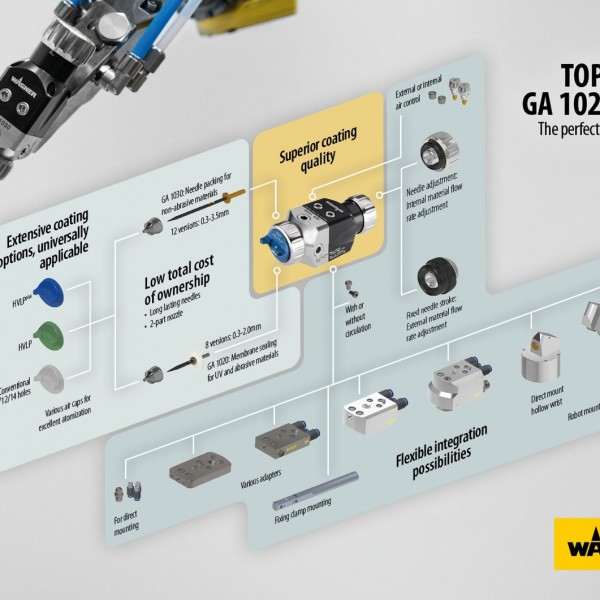

Always the right choice: Universally applicable automatic airspray gun
Extensive coating options:
- HVLPplus / HVLP / Conventional
- Various air caps for excellent atomization
- GA 1030: Needle packing for non-abrasive materials; 12 versions: 0.3 - 3.5 mm
- GA 1020: Membrane sealing for UV and abrasive materials; 8 versions: 0.3 - 2.0 mm
Low total cost of ownership:
- Long-lasting needles
- 2-part nozzle
Superior coating quality:
- External or internal air control
- Needle adjustment: Internal material flow rate adjustment
- Fixed needle stroke: External material flow rate adjustment
- With or without circulation
Flexible integration possibilities:
- Various adapters available
|
Atomization technology |
Conventional (high pressure), HVLPplus (reduced pressure), HVLP |
|
Air cap index |
0°, 30°, 60°, 90°, 120° |
|
Nozzle size GA 1020 |
ø 0.3 - 2 mm |
|
Nozzle size GA 1030 |
ø 0.3 - 3.5 mm |
|
Material passage |
ø 9 mm |
|
Weight |
< 650 g |
|
Atomization air connection |
QS-1/8-8 |
|
Control air connection |
QS-1/8-6 |
|
Material connection |
G 1/4“ |
|
Air inlet pressure |
Max. 8 bar (116 psi) |
|
Material pressure GA 1020 |
Max. 2.5 bar |
|
Material pressure GA 1030 |
Max. 8 bar |
|
Volumetric flow (liter per minute) |
Conv 12: 387, HVLPplus: 273, HVLP: 299 |
|
Switching time |
20 msec |
|
Max. material temperature |
80° C |
|
Max. air temperature |
50° C |
