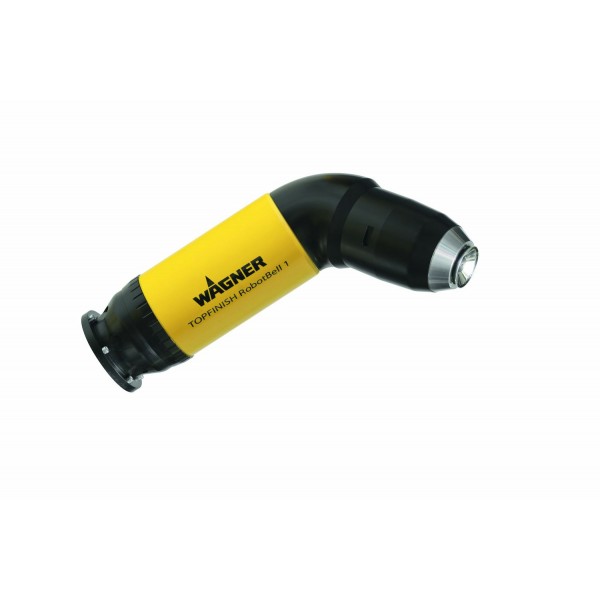

TOPFINISH RobotBell 1
High-speed rotation atomiser for robots
Product Code: TOPFINISH RobotBell 1
With the high-speed rotation atomiser TOPFINISH RobotBell 1, both small workpieces and large surfaces can be coated with highest efficiency. The RobotBell is ideal for electrostatic applications with water and solvent-based paints. Thanks to its versatility and robust properties, it allows perfect surface coatings in a wide range of areas - such as for workpieces in the automotive, metal, plastic or wood industry.
- Ideal coating results with super-fine atomisation
- High variability thanks to individual adjustment of the spray jet with two shroud airs - depending on the workpiece geometry requirements, both a wide, soft spray pattern and a small, hard spray jet can be generated
- Minimum effort for assembly & maintenance thanks to sturdy turbine technology and components made from stainless steel
| SHAFT BEARING | Air bearing |
| ANGLE VERSION | 60° |
| MAXIMUM VOLTAGE | 70 kV (type A) or 100 kV (type B) |
| NOZZLE SIZES | Ø 0.8 / 1.1 / 1.4 / 1.7 mm |
| BELL DISC - SIZE | 30 mm / 50 mm / 70 mm |
| BELL DISC - SERRATION | smooth, straight / cross serrated |
| BELL DISC - MATERIAL | Consistal / titanium |
| MATERIAL VOLUME | 25 - 800 ml/min |
| SPRAY JET DIAMETER | Approx. 70 - 800 mm |
| BEARING AIR PRESSURE | 5.5 bar |
| DRIVE AIR PRESSURE | 0 - 8 bar |
| BRAKE AIR PRESSURE | 0 - 6 bar |
| SHROUD AIR PRESSURE | 0.2 - 4.5 bar |
| MATERIAL PRESSURE | Typically 0.5 - 2.0 bar, max. 8 bar |
| MATERIAL CONNECTIONS | G 1/4" internal |
| AIR CONNECTIONS | 4 / 6 / 8 mm |
| MAX. MATERIAL TEMPERATURE | +50 °C |
| AMBIENT TEMPERATURE | 0 °C to +40 °C |
| TEMPERATURE OF TURBINE AIR | +15 °C to +50 °C |
