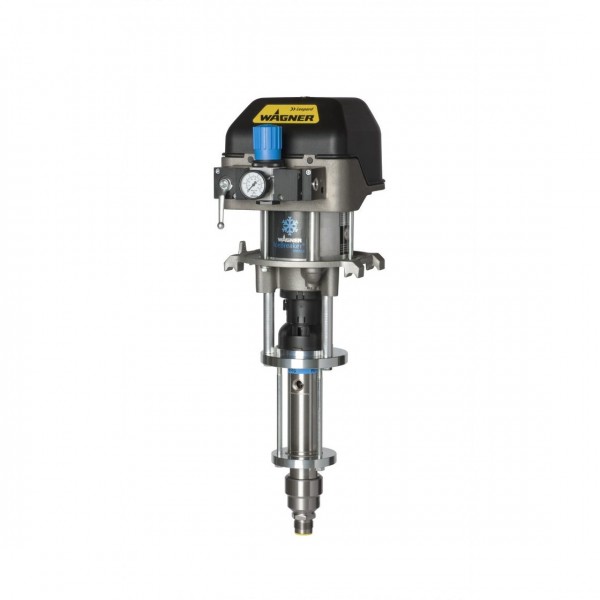

Leopard 35-70
High-pressure piston pumps
Finishing
Product Code: Leopard 35-70
High-pressure piston pump, stainless steel for Airless and AirCoat applications up to 250 bar and 4 l/min. Ideal for e.g. industrial coatings in the wood and metal industries.
| OPERATING PRESSURE | 250 bar, 3626 PSI |
| VOLUME FLOW PER DOUBLE STROKE | 70 cm³/DS, 4.27 in³/DS |
| MATERIAL INLET | M–M 36x2 |
| MATERIAL OUTLET | M–M 24x1.5 |
| INLET AIR PRESSURE | 2,5 – 7,1 bar, 36 – 103 PSI |
| MATERIAL TEMPERATURE | 5 - 80 °C, 41 - 176 °F |
| AMBIENT TEMPERATURE | 5 – 60 °C, 41 – 140 °F |
| PH VALUE OF MATERIAL | 3.5 – 9 pH |
| MAX. MATERIAL PRESSURE AT PUMP INLET | 20 bar, 290 PSI |
| WEIGHT | 26.0 kg, 57.3 lb |
