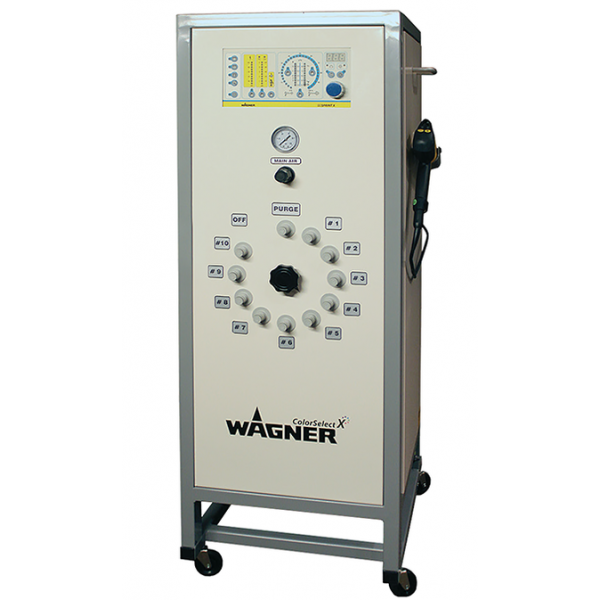

ColorSelect X
Product Code: WAGN_8931_ColorSelect_X_Product_Sht-1
The new WAGNER ColorSelect X is designed for the quickest powder color change while providing the least potential for cross contamination and powder loss.
WAGNER ColorSelect X incorporates a simple, robust pneumatic control system of up to 10 powder feed systems including hopper utilizing air, powder injector feed air, and dosage air. The operator control panel includes the WAGNER ColorSelect X dial and quick connect ports for 10 colors.
- Color Changes in Less than a Minute!
- Easy to Operate and Maintain
- EPG-Sprint Recipe Control
- Lowest Cost of Ownership
| WIDTH | 18" |
| HEIGHT | 48" |
| DEPTH | 22" |
| WEIGHT | approx. 150 lbs |
| VOLTAGE | 100-240 V AC |
| INPUT POWER | 100 W |
| PROTECTION CLASS | IP 64 |
| EX-ZONE | Ex II 3D T85° C |
| SUPPLY AIR PRESSURE | 0.6-0.8 MPa; 6-8 bar; 97-116 psi |
| AIR CONSUMPTION | 1-2 m/h³; 35 -70 cf |
| REQUIRED COMPRESSED AIR QUALITY | acc. to ISO 8573-1 Class 2, Quality class 5 2 3 3 |
