Puma 15-150

Puma 15-150

High-pressure piston pumps

Finishing

WAGNER

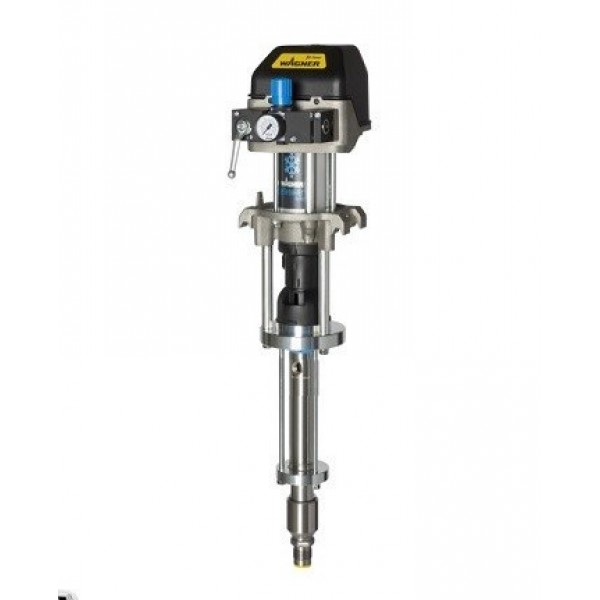

Product Code: Puma 15-150

High-pressure piston pump, stainless steel for AirCoat applications up to 120 bar and 9 l/min. Ideal for e.g. industrial coatings in the wood and metal industries, use of multiple guns.


OPERATING PRESSURE 120 bar, 1740 PSI
VOLUME FLOW PER DOUBLE STROKE 150 cm³/DS, 9.15 in³/DS
MATERIAL INLET M–M 36x2
MATERIAL OUTLET M–M 24x1.5
INLET AIR PRESSURE 2,5 – 8,0 bar, 36 – 116 PSI
MATERIAL TEMPERATURE 5 - 80 °C, 41 - 176 °F
AMBIENT TEMPERATURE 5 – 60 °C, 41 – 140 °F
PH VALUE OF MATERIAL 3.5 – 9 pH
MAX. MATERIAL PRESSURE AT PUMP INLET 20 bar, 290 PSI
WEIGHT 28.0 kg, 61.7 lb
