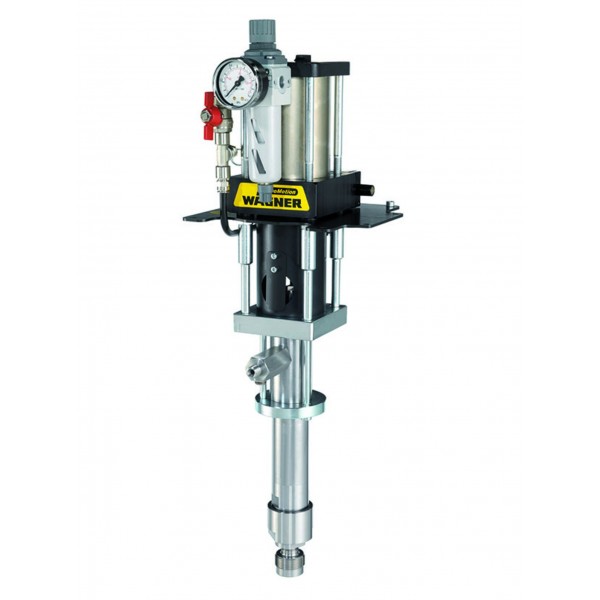

EvoMotion 20-30S
High-pressure piston pumps
Finishing
Product Code: EvoMotion 20-30S piston pump
High-pressure piston pump, stainless steel, for Airless and AirCoat applications up to 160 bar and 1.8 L/min. Ideal, for example, for professional lacquer stations in single-item production and for workshops.
| PUMP RATIO | 20 :1 |
| OPERATING PRESSURE | 160 bar, 2321 PSI |
| VOLUMETRIC FLOW PER DOUBLE STROKE | 30 cm³/DS, 1,83 in³/DH |
| VOLUMETRIC FLOW PER 60 DH | 1.8 l/min |
| MAX. STROKE RATE | 60 DS/min |
| MATERIAL INLET | A–M36x2 |
| MATERIAL OUTLET | A–1/4‘‘ NPS |
| AIR INLET CONNECTION | 8 mm |
| AIR INLET PRESSURE | 2,5 – 8,0 bar, 36 – 116 PSI |
| SOUND LEVEL AT 6 BAR AIR PRESSURE | 74 dB(A) |
| MATERIAL TEMPERATURE | 5 - 80 °C, 41 - 176 °F |
| AMBIENT TEMPERATURE | 5 – 60 °C, 41 – 140 °F |
| MATERIAL PH | 3.5 – 9 pH |
| MAX. MATERIAL PRESSURE AT PUMP INLET | 20 bar, 290 PSI |
| ALLOWABLE INCLINATION | ±10 ° |
| WEIGHT | 11,0 kg, 24.3 lb |
