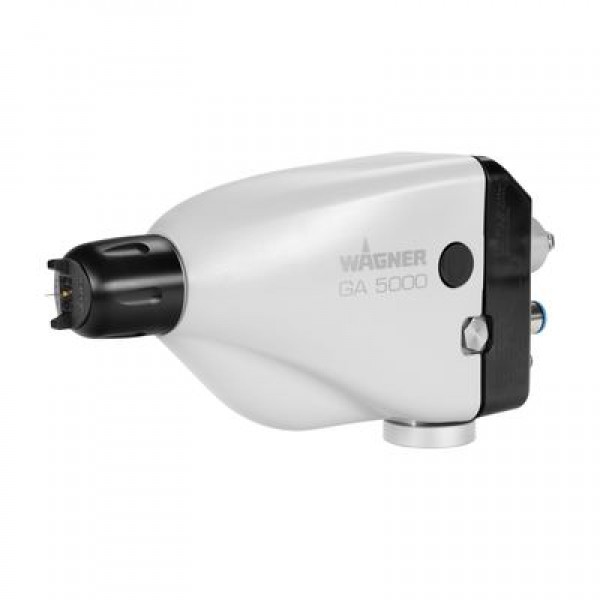

Automatic electrostatic gun GA 5000 EAW

Automatic electrostatic gun GA 5000 EAW

Low-pressure gun for water-based paints

WAGNER
Product Code: GA 5000 EAW

With the automatic electrostatic gun GA 5000 EAW, up to 50% material and 20% coating time can be saved. Furthermore it also offers wide-ranging opportunities in terms of ideal application control in combination with the control unit VM 5020 WA of the AquaCoat system.


  • High application efficiency through soft spray jet

  • High coating quality through fine atomization

  • Even curves and inaccessible locations can be coated with high quality

  • Short maintenance times thanks to easy assembly & disassembly

  • Manual or automatic control via external interface

OUTPUT VOLTAGE 80 KV
OUTPUT CURRENT 100 µA
ATOMIZING PRESSURE MAX 8 bar
MATERIAL PRESSURE MAX 8 bar
LENGTH 268 mm
WIDTH 74 mm
HEIGHT 135 mm
MATERIAL CONNECTION G 1/4"
ATOMIZING AIR CONNECTION D10
FORMING AIR CONNECTION D8
CONTROL AIR CONNECTION D6
WEIGHT(WITHOUT PUMP) 1 kg
OPERATING TEMPERATURE 0°C - 40°C
MAX. MATERIAL TEMPERATURE 50°C
