Tiger 72-300
High-pressure piston pumps
Protective Coating
Product Code: Tiger 72-300

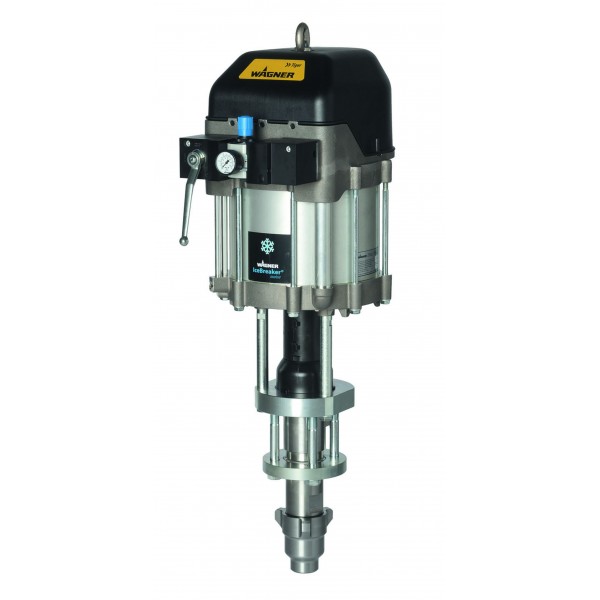

High-pressure piston pump, stainless steel, for Airless applications up to 530 bar and 12 L/min with critical material. Ideal for thick coat corrosion protection with large material application, multiple gun use.
| OPERATING PRESSURE | 530 bar, 7687 PSI |
| VOLUMETRIC FLOW PER DOUBLE STROKE | 300 cm³/DS, 18,31 in³/DH |
| MATERIAL INLET | I–G 1 1/2‘‘ |
| MATERIAL OUTLET | A–M 24x1,5 |
| AIR INLET PRESSURE | 2,5 – 7,4 bar, 36 – 107 PSI |
| MATERIAL TEMPERATURE | 5 - 80 °C, 41 - 176 °F |
| AMBIENT TEMPERATURE | 5 – 60 °C, 41 – 140 °F |
| MATERIAL PH | 3.5 – 9 pH |
| MAX. MATERIAL PRESSURE AT PUMP INLET | 20 bar, 290 PSI |
| WEIGHT | 80,0 kg, 176.4 lb |
