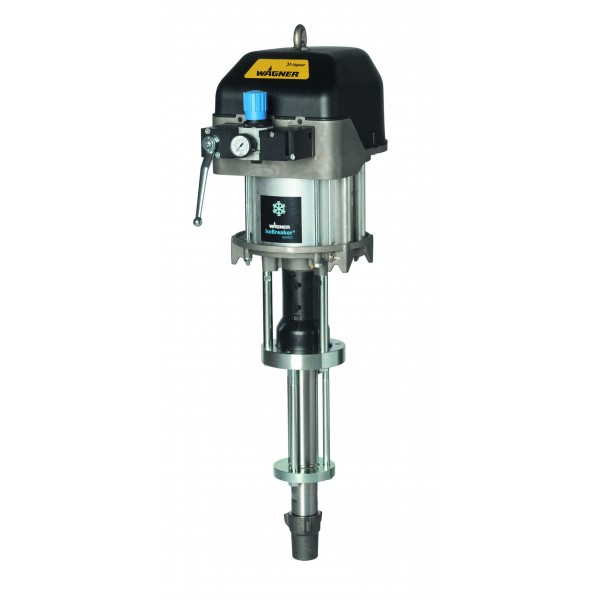

Jaguar 75-150

Jaguar 75-150

High-pressure piston pumps

Protective Coating

WAGNER
Product Code: Jaguar 75-150

High-pressure piston pump, stainless steel, for Airless applications up to 530 bar and 9 L/min. Extremely robust and ideal for heavy corrosion protection.


OPERATING PRESSURE 530 bar, 7687 PSI
VOLUMETRIC FLOW PER DOUBLE STROKE 150 cm³/DS, 9,15 in³/DH
MATERIAL INLET I–G 1 1/2‘‘
MATERIAL OUTLET A–M 24x1,5
AIR INLET PRESSURE 2,5 – 7,1 bar, 36 – 103 PSI
MATERIAL TEMPERATURE 5 - 80 °C, 41 - 176 °F
AMBIENT TEMPERATURE 5 – 60 °C, 41 – 140 °F
MATERIAL PH 3.5 – 9 pH
MAX. MATERIAL PRESSURE AT PUMP INLET 20 bar, 290 PSI
WEIGHT 53,0 kg, 116.9 lb
