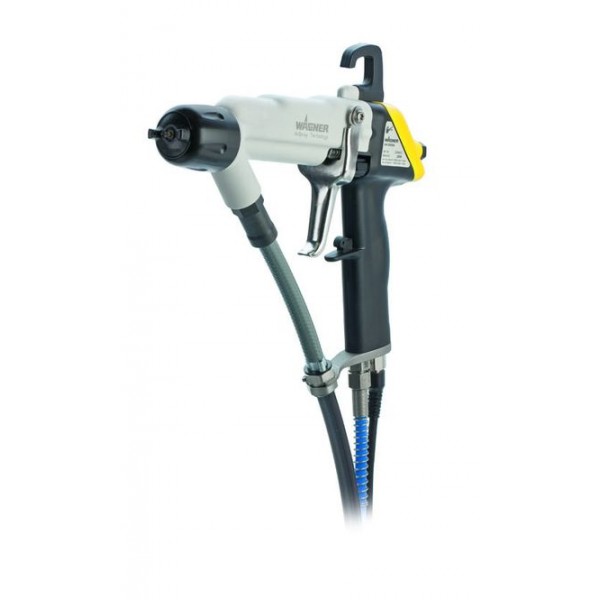

GM 5000EAW
Electrostatic manual gun Airspray for water-based lacquers
Product Code: GM 5000EAW
Electrostatic manual gun for Airspray applications with water-based material and internal charging.
| OUTPUT VOLTAGE | 70,0 kV |
| OUTPUT CURRENT | 100 µA |
| MAX. MATERIAL PRESSURE | 8 bar, 116 |
| MATERIAL TEMPERATURE | 60 °C, 140.0 °F |
| MAX. AIR INLET PRESSURE | 8 bar, 116 PSI |
| COMPRESSED AIR CONNECTION | A – G 1/4“ |
| OPERATING TEMPERATURE | 5 – 40 °C, 41.0 – 104.0 °F |
| WEIGHT | 630 g, 1.39 lb |
| LENGTH | 261,0 mm, 10.3 in |
| HEIGHT | 245 mm, 9.6 in |
