  • GM 5000EAC
GM 5000EAC
  • GM 5000EAC

GM 5000EAC

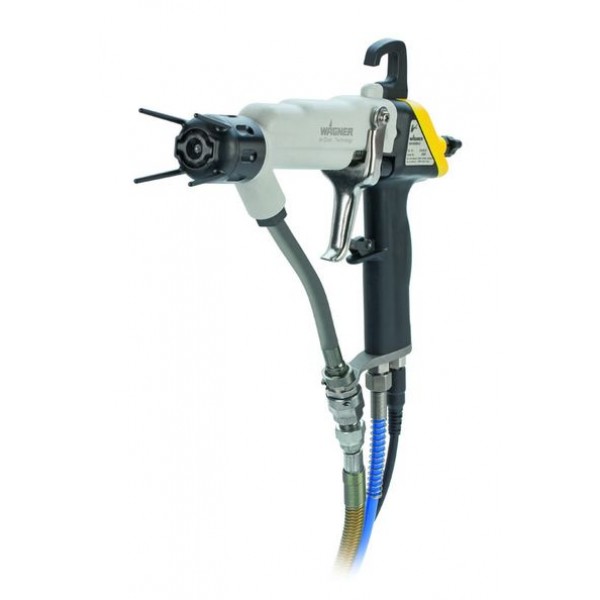

Electrostatic manual gun AirCoat for solvent-based lacquers

WAGNER
Product Code: GM 5000EAC

Electrostatic manual gun for AirCoat applications with low-conductive solvent-based material. With integrated high-voltage cascade. Additionally required: Control unit VM500 or VM 5000.

  • Specification
  • Download
  • Video

OUTPUT VOLTAGE 80,0 kV
OUTPUT CURRENT 100 µA
MATERIAL PRESSURE 0 – 250 bar, 0 – 3626 PSI
MATERIAL CONNECTION NPS 1/4“
MATERIAL TEMPERATURE 60 °C, 140.0 °F
LACQUER CONDUCTIVITY 20 – 500
LACQUER CONDUCTIVITY LOWR 4 – 25
AIR INLET PRESSURE 0,0 – 0,8 MPa, 0,0 – 8,0 bar, 0 – 116 PSI
AIR INLET CONNECTION G 1/4“
OPERATING TEMPERATURE 5 – 40 °C, 41.0 – 104.0 °F
WEIGHTV710 G, 1.57 LB
LENGTH 264,0 mm, 10.4 in
HEIGHT 246 mm, 9.7 in

Related Products

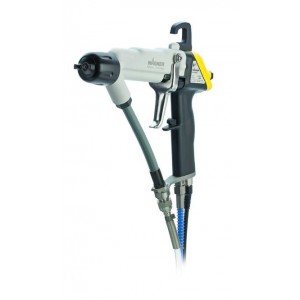

GM 5000EA

GM 5000EA

Contact
GM 5000EAC

GM 5000EAC

Contact
GM 5000EAW

GM 5000EAW

Contact
GM 5000EACW

GM 5000EACW

Contact

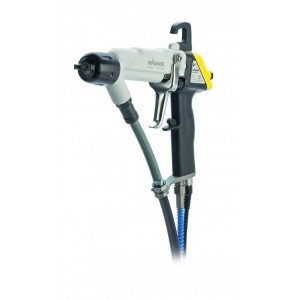

GM 5020 EAW

GM 5020 EAW

Contact

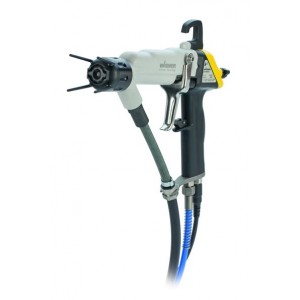

GM 5020 EACW
