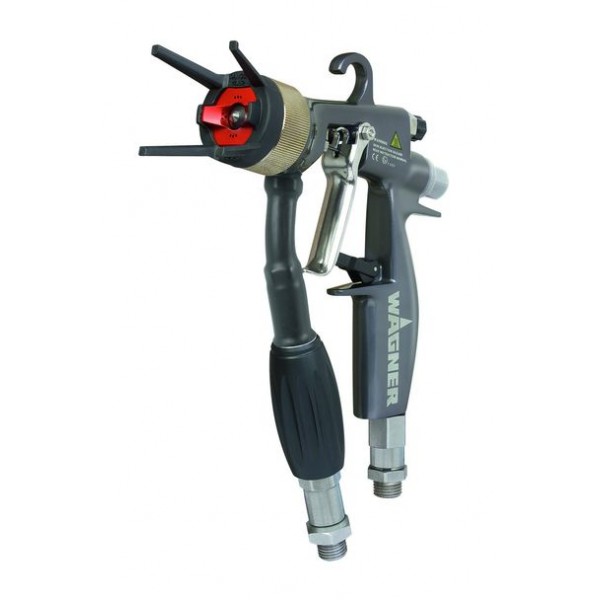

GM 4700AC-H
AirCoat manual gun
Product Code: GM 4700AC-H
Light AirCoat manual guns with insulation for processing heated materials. The gun is designed for a product pressure of up to 350 bar.
| ARTICLE NUMBER | 2314545 |
| FLUID INLET | A – NPSM 1/4“ |
| COMPRESSED AIR CONNECTION | A – G 1/4“ |
| MAX. MATERIAL PRESSURE | 350.0 bar, 5076 PSI |
| MAX. MATERIAL TEMPERATURE | 55 °C, 131.0 °F |
| MAX. AIR INLET PRESSURE | 8,0 bar, 116 PSI |
| OPERATING TEMPERATURE | 5 – 40 °C, 41.0 – 104.0 °F |
| WEIGHT | 0,6 kg, 1.3 lb |
| MAX. SOUND LEVEL | 82 dB(A) |
| LENGTH | 173,0 mm, 6.8 in |
| HEIGHT | 216 mm, 8.5 in |
