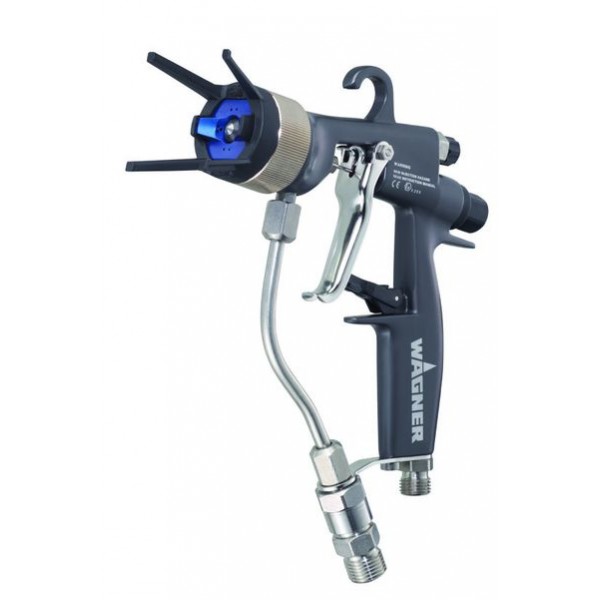

GM 4100AC
AirCoat manual gun
Product Code: GM 4100AC
Light AirCoat manual gun with excellent ergonomics for smaller hands. With various nozzles and air caps for low-viscosity and highest-viscosity products.
| ARTICLE NUMBER | 394012 |
| FLUID INLET A | NPSM 1/4“ |
| COMPRESSED AIR CONNECTION A | G 1/4“ |
| MAX. MATERIAL PRESSURE | 250,0 bar, 3626 PSI |
| MAX. MATERIAL TEMPERATURE | 55 °C, 131.0 °F |
| MAX. AIR INLET PRESSURE | 8,0 bar, 116 PSI |
| OPERATING TEMPERATURE | 5 – 40 °C, 41.0 – 104.0 °F |
| WEIGHT | 0,6 kg, 1.3 lb |
| MAX. SOUND LEVEL | 82 dB(A) |
| LENGTH | 173,0 mm, 6.8 in |
| HEIGHT | 206 mm, 8.1 in |
