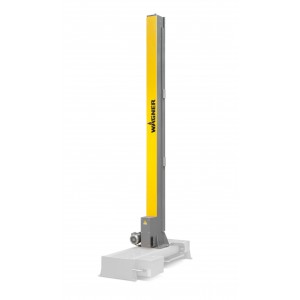

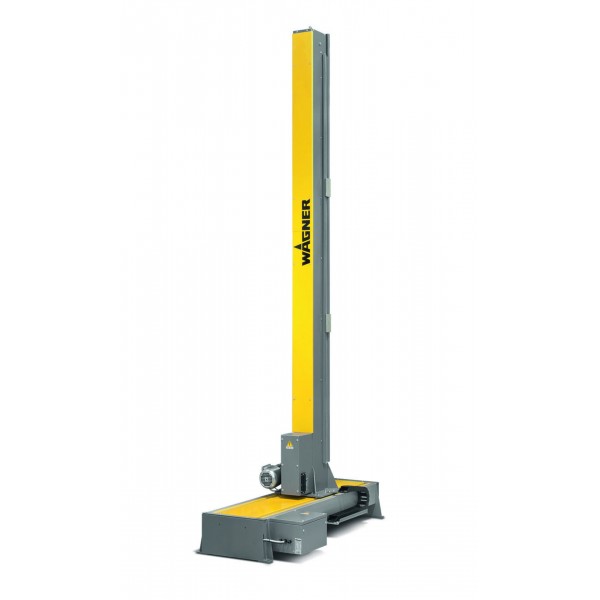

Product Code: VU 1 Vertical movement system

The motion technology is flexibly applicable. Whether long or short strokes, with this technology any motion sequence can be executed with precision. The horizontal sliding table allows for complex motions and thus ensures the coating of complex parts.


  • Flexible application

  • A device for both long and short stroke applications and as a positioning device

  • Intelligent drive concept

  • Ensures precise and durable path measurement with an intelligent frequency converter

  • Stable mechanical construction

  • Lightweight, but robust design thanks to aluminium sections and clearance free precision linear guiding and ball cages.

  • Maintenance-friendly drive concept

  • Wire-enforced toothed belt ensures a long service life

INPUT VOLTAGE 230 – 400 V
INPUT FREQUENCY 50 Hz
AMBIENT TEMPERATURE 0 – 45 °C, 32 – 113 °F
ASCENT AND DESCENT SPEED 6 – 30 m/min
