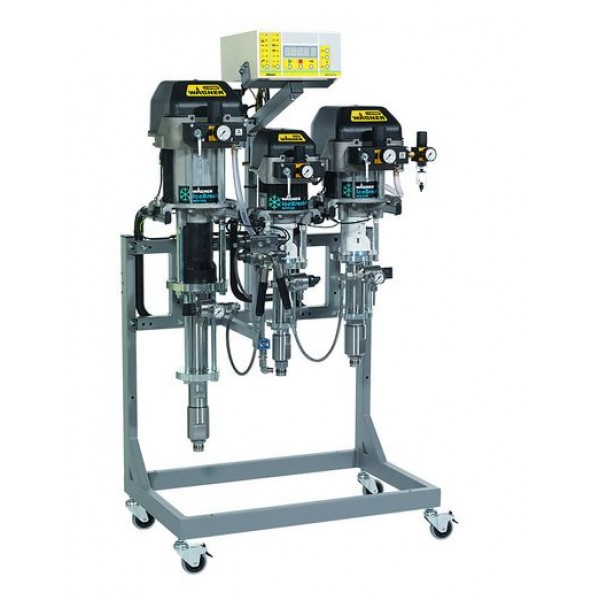

TwinControl 35-150/35-70
  • TwinControl 35-150/35-70

TwinControl 35-150/35-70

Electronic mixing and dosing system

WAGNER
Product Code: TwinControl 35-150/35-70

Electronic 2K mixing system for AirCoat applications up to 270 bar. Including flushing pump and fully automatic flushing process. Second color can be retrofitted with extension set.

  • Specification
  • Download
  • Video

INPUT VOLTAGE (NOT ATEX) 115 – 230 V
INPUT FREQUENCY (NOT ATEX) 50 – 60 Hz
AIR INLET PRESSURE 5,0 – 8,0 bar, 73 – 116 PSI
AIR INLET CONNECTION I–G 1/2"
MIXING RATIO 0,1:1 – 20:1
MIXING ACCURACY ± 2%
MATERIAL PRESSURE 250 bar, 3626 PSI
VOLUME FLOW AT A 4:1 MIXING RATIO (MAX.) 5.6 l/min
VOLUME FLOW AT A 10:1 MIXING RATIO (MAX.) 4.9 l/min
VOLUME FLOW AT A 20:1 MIXING RATIO (MAX.) 4.7 l/min
MATERIAL INLET A–M 36x2
MATERIAL OUTLET A–G 3/8''
MAX. MATERIAL PRESSURE AT PUMP INLET 5 bar, 73 PSI
MATERIAL TEMPERATURE 5 - 60 °C, 41.0 - 140.0 °F
AMBIENT TEMPERATURE 5 – 40 °C, 41 – 104 °F
MATERIAL PH 3,5 – 9,0 pH
