  • Puma 8-300
Puma 8-300
  • Puma 8-300

Puma 8-300

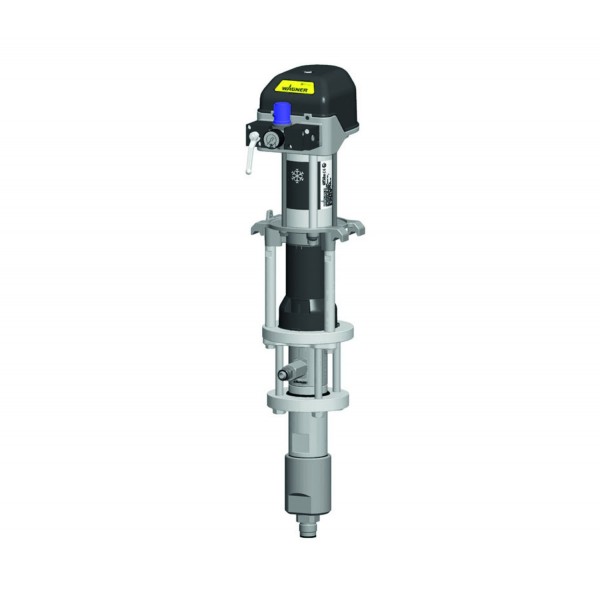

Low-pressure piston pump

WAGNER
Product Code: Puma 8-300

Low-pressure piston pump, stainless steel for feed and circulating systems up to 15 L/min.

  • Specification
  • Download
  • Video

OPERATING PRESSURE 64 bar, 928 PSI
VOLUMETRIC FLOW PER DOUBLE STROKE 300 cm³/DS, 18,31 in³/DH
VOLUMENSTROM PER 50 DH 15 l/min
MAX. STROKE RATE 50 DS/min
MATERIAL INLET A–M 36x2
MATERIAL OUTLET A–M 24x1,5
AIR INLET PRESSURE 2,5 – 8,0 bar, 36 – 116 PSI
SOUND LEVEL AT 6 BAR AIR PRESSURE 74 dB(A)
MATERIAL TEMPERATURE 5 - 80 °C, 41 - 176 °F
AMBIENT TEMPERATURE 5 – 60 °C, 41 – 140 °F
MATERIAL PH 3.5 – 9 pH
MAX. MATERIAL PRESSURE AT PUMP INLET 20 bar, 290 PSI
ALLOWABLE INCLINATION ±10 °
WEIGHT 32,0 kg, 70.6 lb
