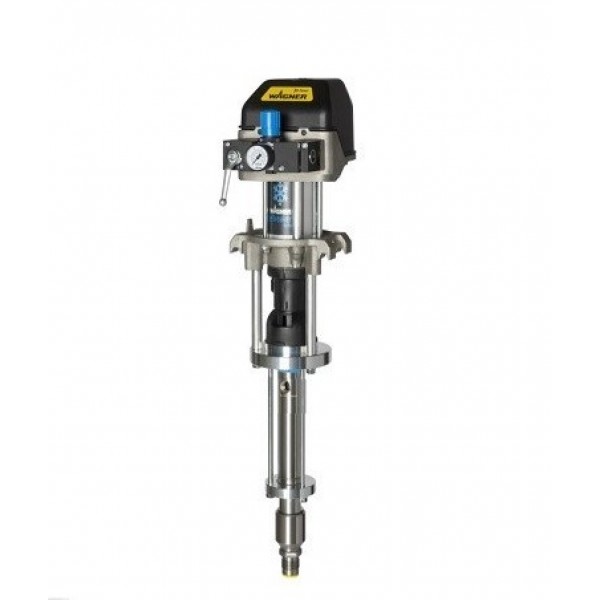

Puma 21-110
High-pressure piston pumps
Finishing
Product Code: Puma 21-110
High-pressure piston pump, stainless steel, for AirCoat applications up to 168 bar and 6.6 L/min. Ideal, for example, for multiple guns in a flatbed machine.
| OPERATING PRESSURE | 168 bar, 2437 PSI |
| VOLUME FLOW PER DOUBLE STROKE | 110 cm³/DS, 6.71 in³/DS |
| MATERIAL INLET | A–M 36x2 |
| MATERIAL OUTLET | A–M 24x1.5 |
| INLET AIR PRESSURE | 2,5 – 8,0 bar, 36 – 116 PSI |
| MATERIAL TEMPERATURE | 5 - 80 °C, 41 - 176 °F |
| AMBIENT TEMPERATURE | 5 – 60 °C, 41 – 140 °F |
| PH VALUE OF MATERIAL | 3.5 – 9 pH |
| MAX. MATERIAL PRESSURE AT PUMP INLET | 20 bar, 290 PSI |
| WEIGHT | 28.0 kg, 61.7 lb |
