PrimaCenter Integral

PrimaCenter Integral

Powder feed in paint change system

Product Code: PrimaCenter Integral

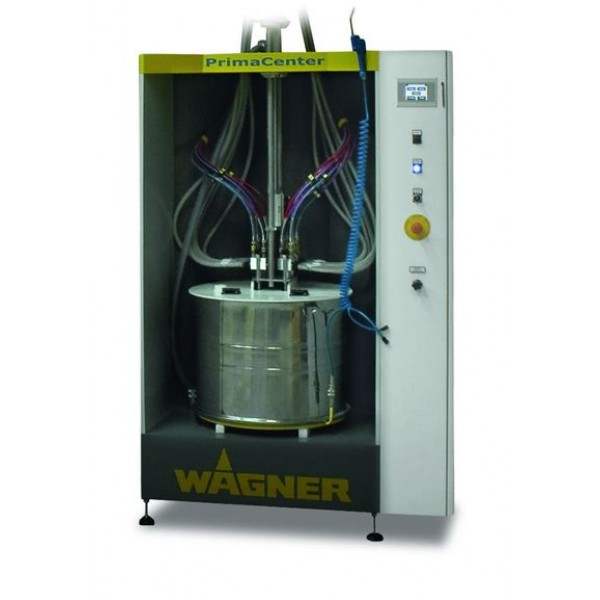

The PrimaCenter Integral can accommodate up to 12 powder injectors. It is designed for the powder supply in the paint change systems and ensures a simple paint change through partially automated cleaning procedures.


  • Robust, compact design

  • Space-saving construction

  • Delivery from the fluid container

  • High-quality coating results

  • Electronic controller with 4“ paint touchscreen

  • Integratet application control in combination with EPG Sprint and moving devices VU, HU

  • Icons and text

  • Easy to operate

MIN. COMPRESSED AIR HOSE CROSS SECTION 25,40 mm, 1 in
AIR INLET PRESSURE 0,6 – 0,8 MPa, 6,0 – 8,0 bar, 87 – 116 PSI
AIR CONSUMPTION 25 Nm³/h
WIDTH 800 mm, 31.5 in
HEIGHT 2216 mm, 87.2 in
DEPTH 800 mm, 31.5 in
