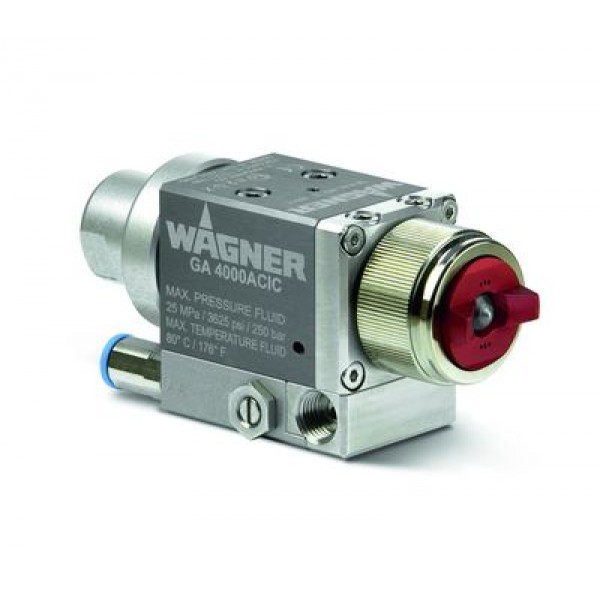

GA 4000ACIC
AirCoat automatic gun
Product Code: GA 4000ACIC
AirCoat automatic guns with internal controller for the installation in automated lacquer spraying systems. Various base plates allow numerous installation options. With or without circulation.
| ARTICLE NUMBER | 2312132 |
| FLUID INLET | I – G 1/4“ |
| COMPRESSED AIR CONNECTION | 8 mm |
| MAX. MATERIAL PRESSURE | 250,0 bar, 3626 PSI |
| MAX. MATERIAL TEMPERATURE | 80 °C, 176.0 °F |
| MAX. AIR INLET PRESSURE | 8,0 bar, 116 PSI |
| OPERATING TEMPERATURE | 5 – 40 °C, 41.0 – 104.0 °F |
| AMBIENT TEMPERATURE | 5 – 40 °C, 41 – 104 °F |
| WEIGHT | 0,7 kg, 1.5 lb |
| MAX. SOUND LEVEL | 82 dB(A) |
| LENGTH | 129,0 mm, 5.1 in |
| WIDTH | 47 mm, 1.9 in |
| HEIGHT | 60 mm, 2.4 in |
