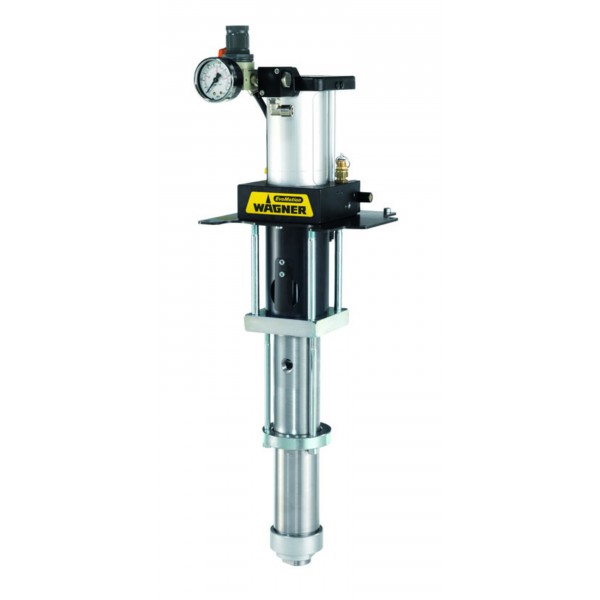

EvoMotion 5-60S
Low-pressure piston pump
Product Code: EvoMotion 5-60S piston pump
Low-pressure feed pump for Airspray applications with high-viscosity material or long hose lines. Up to 40 bar and 3.6 L/min.
| OPERATING PRESSURE | 40 bar, 580 PSI |
| VOLUMETRIC FLOW PER DOUBLE STROKE | 60 cm³/DS, 3,66 in³/DH |
| MATERIAL INLET | A–M36x2 |
| MATERIAL OUTLET | I–G 3/8“ |
| AIR INLET CONNECTION | 8 mm |
| AIR INLET PRESSURE | 2,5 – 8,0 bar, 36 – 116 PSI |
| MATERIAL TEMPERATURE | 5 - 80 °C, 41 - 176 °F |
| AMBIENT TEMPERATURE | 5 – 60 °C, 41 – 140 °F |
| MATERIAL PH | 3.5 – 9 pH |
| MAX. MATERIAL PRESSURE AT PUMP INLET | 20 bar, 290 PSI |
| WEIGHT | 13,0 kg, 28.7 lb |
