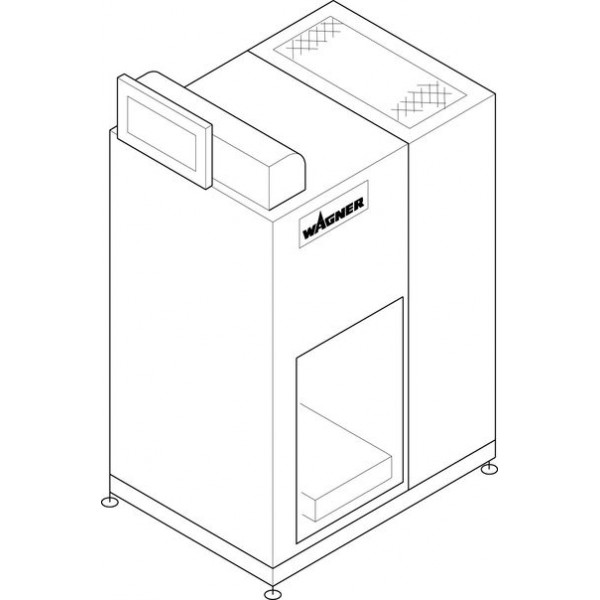

After-filter unit, ICM multicyclone
powder recovery system
Final filters are required to operate a cyclone system. They provide the necessary suction capacity and must be matched to the pressure loss in the overall system.
- Filter cartridges, application categories U, S, G, C
- Meet the legal requirements for powder removal
- Filter cleaning with compressed air pulses
- Low air consumption
- Differential pressure monitor
- Maintain the minimum suction capacity
| FILTER SURFACE AREA | 120 m², 1.291,7 ft² |
| AIR INLET PRESSURE | 0,6 – 0,8 MPa, 6,0 – 8,0 bar, 87 – 116 PSI |
| AIR CONSUMPTION | 15 Nm³/h |
| OPERATING TEMPERATURE | 5 – 35 °C, 41.0 – 95.0 °F |
